Industrial computer · Review in progress

EDATEC ED-IPC1220: A Raspberry Pi industrial controller for DIN rails

We unbox EDATEC’s compact industrial computer, establish Ethernet and Wi-Fi access, verify RS485 communication, and measure the timing behavior of its digital inputs and outputs.

Hands-on reviewUpdated October 20263-part series

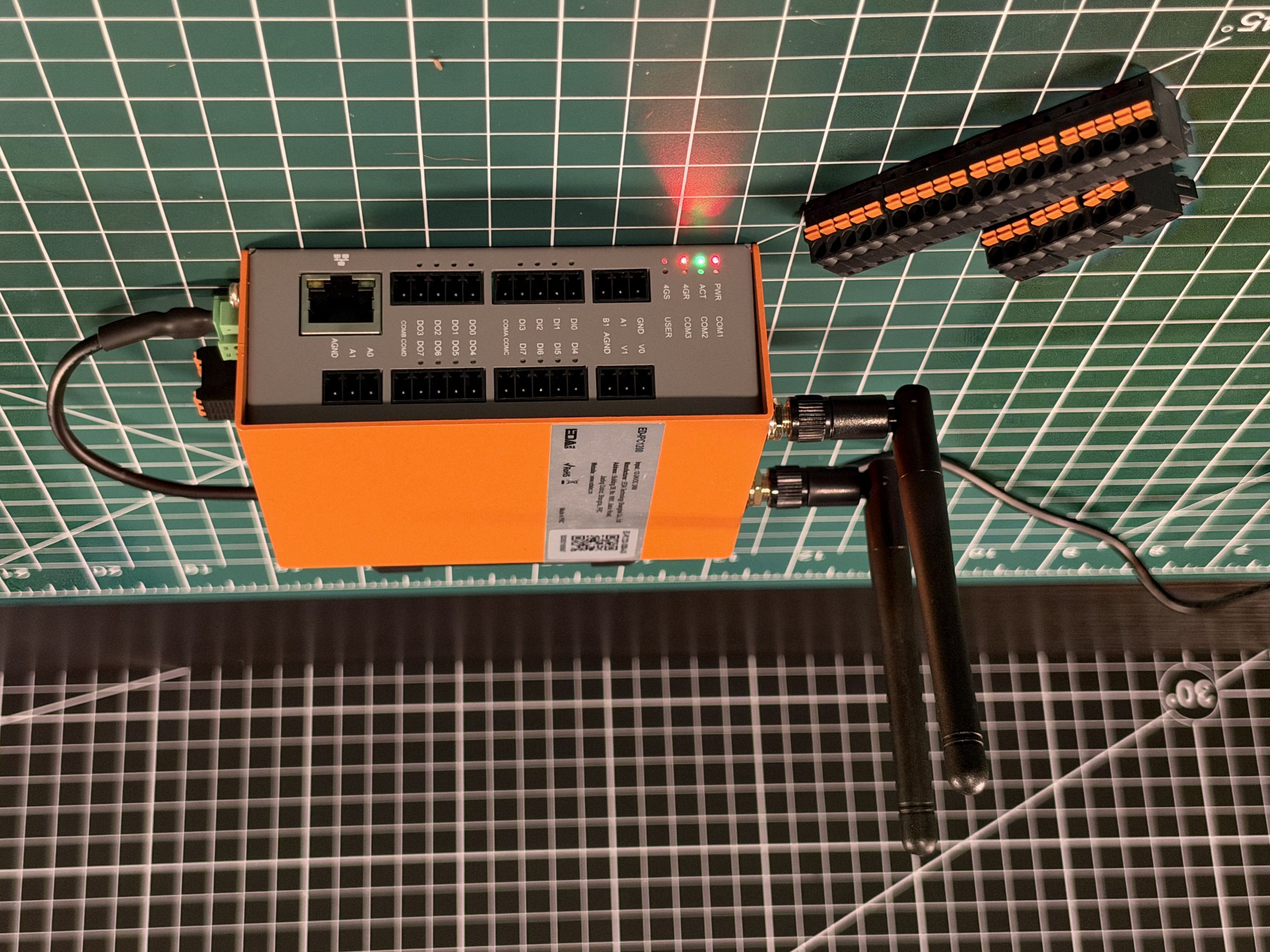

Orange EDATEC ED-IPC1220 industrial computer with antennas and removable terminal blocks arranged in front
The ED-IPC1220 and its removable field-wiring terminals on our bench.

The ED-IPC1220 looks designed for a control cabinet rather than a desktop. Its orange metal enclosure, DIN-rail clip, external antennas, and rows of removable terminals make that clear before a cable is connected.

Our first chapter looks at the package, the hardware in hand, and the connection layout that gives this compact system its industrial character.

Inside the package

What’s included

The box includes the computer, a 12V/2A power supply, external antennas, and the removable connectors needed for field wiring.

What is visible on the hardware

Form factorDIN-rail industrial computer
Field wiringRemovable terminal blocks
Network & expansionEthernet, USB, and antenna connections
Included power12V/2A external supply

Product links

Where to learn more or buy the ED-IPC1220

Orange EDATEC ED-IPC1220 industrial computer with antennas and terminal blocks
ManufacturerEDATEC official product pageSpecifications, documentation, and ordering informationDistributorBuy on DigiKeyED-IPC1220-10008-4EU product listingDistributorBuy on MouserView the ED-IPC1220 distributor listing

Pricing and availability are controlled by the linked manufacturer and distributors and may change.

Read the review

01

Published

Unboxing

Packaging, included accessories, enclosure, connectors, and first impressions.

→02

Published

Getting started

Direct Ethernet discovery, Wi-Fi setup, RS485 testing, and serial-login troubleshooting.

→03

Draft

Digital I/O testing

GPIO control, output timing, pull-up effects, edge-event logging, and active-low input behavior.

→
